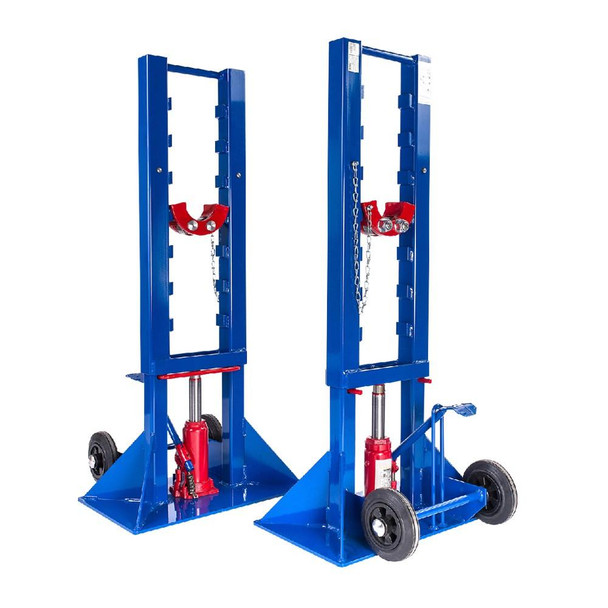

AXO 10T EAX100-32 Hydraulic Jacks (pair + axle) for Cable Drums, max load 10000kg

Hydraulic jacks AXO 10 tons

The AXO 10 TONNES is intended for unwinding large reels, on site or in the workshop.

- the maximum diameter of the drum : 3200 mm

- the maximum width of the drum : 1900 mm

The bearings that support the axis: with or without ball bearings.

Bearings

With bearings : ideal for manual pulling at low speed.

The unwinding is very easy.

Without bearings : ideal for motorized pulling (winding machine, capstan winch)

The plain bearing exerts a natural brake which reduces the inertia of the reel at the end of the unwinding.

The bearings are removable, but attached by a chain to avoid losing them.

Axis

Diameter 76 mm

Supplied with 2 flat centering devices, which prevent the reel from slipping on one side.

Lifting the drum

By hydraulic cylinder with foot pump.

Lifting is very fast thanks to the removable bearings :

- We introduce the axis into the reel

- The bearings are positioned just below the axis (13 positions for EAX100-32)

- A few centimeters of lifting are enough to lift the reel off the ground and be able to unwind.

Move

The jacks are easy to move by tilting, using the horizontal bar, on 2 wheels Ø 160mm.

Use in front of a winding machine

Fixing to the ground is compulsory.
