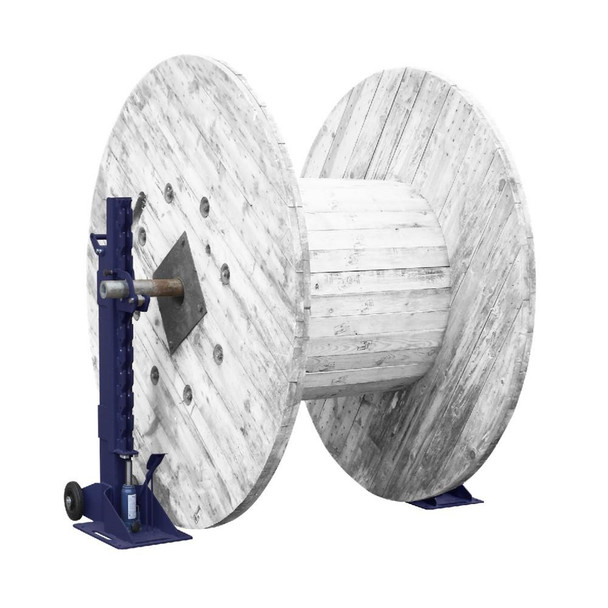

AXO Hydraulic Jacks for Cable Drums, max 6 Tons

6 ton hydraulic jack stands

The AXO6000 is designed for unwinding large reels, on site or in the workshop.

It is composed of 2 candles and an axle with centering devices.

Smooth rolling: the axle rests on 2 ball bearings on each side.

Easy to move by tilting, thanks to the handle, on 2 wheels diameter 180 mm.

Lifting ring.

2 hydraulic jacks with foot pump.

Removable shoe (10 positions) to facilitate climbing.

Axis locking system to prevent the reel from being ejected.

Once fixed to the ground, the AXO6000 can therefore be used in front of a winding machine.

For reel:

- diameter 750 to 2700 mm

- maximum width 1450mm

- maximum weight 6 tonnes.

Axle Ø 76 mm.

Made of steel with epoxy powder coating.

Dimensions of a candle: L 650 x W 400 x H1360 mm

Weight of each candle: 71.5 kg

Total weight: 169 kg
